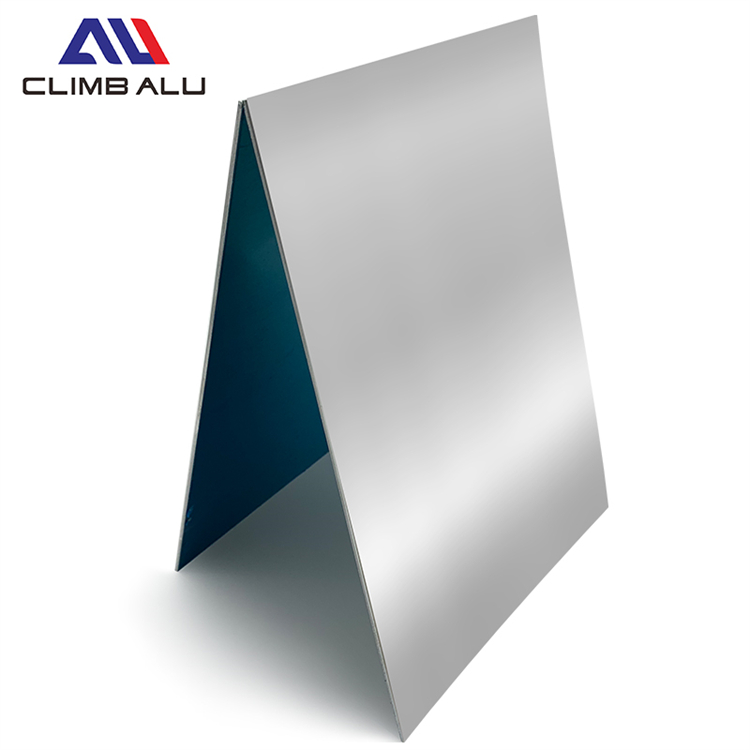

3003 Aluminum Sheet

Climb Aluminium stocks 3003 aluminum sheets – a manganese alloy, part of the common alloy group. 3003 is the most widely used of all aluminum alloys. It is essentially commercially pure aluminum with the addition of manganese which increases the strength approx. 20% over 1100 grade aluminum alloy. 3003 may show some slight discoloration when anodized, but it reacts well to mechanical and organic finishings. Aluminum 3003 is easily welded and brazed, but soldering is limited to the torch method. It has all the excellent characteristics of 1100 with higher strength.

Product Features:

3003 aluminum is a general-purpose alloy that demonstrates moderate strength, good formability, workability, and can be easily drawn. It shows about 20% greater strength than 1100 aluminum and its primary alloying element is manganese. It shows up in everyday products from hardware and utensils to general sheet metal fabrication and automotive components. It is considered very similar to 3004. The key difference between the two aluminum grades is strength. Unlike 3003 aluminum 3004 has an addition of 1% magnesium which lends it greater strength, nearing the levels of 5052 aluminum.

Product Parameters:

product name: 3003 aluminum sheet
Alloy:3003
Temper: H24、H14、O、H22、H12、H26、H16
Thickness(mm):0.1-300
Width(mm):7-2250
Length(mm):500-160000

Application and After-Sales Service:

Conforms to AMS QQ-A-250/2 and ASTM B209.
Typical applications for 3003:
Cooking Utensils
Builder’s Hardware
Pressure Vessels
Ice Cube Trays
Eyelet Stock
Awning Slats
Gas Lines
Garage Doors
